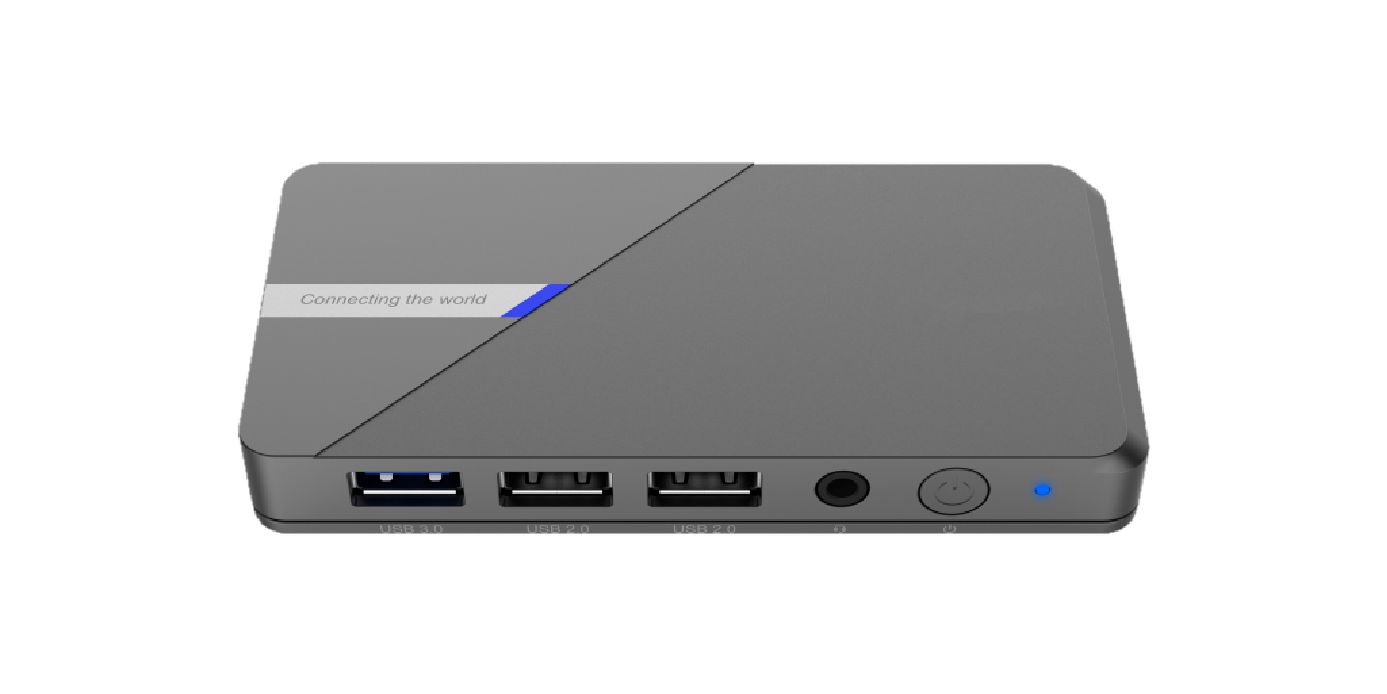

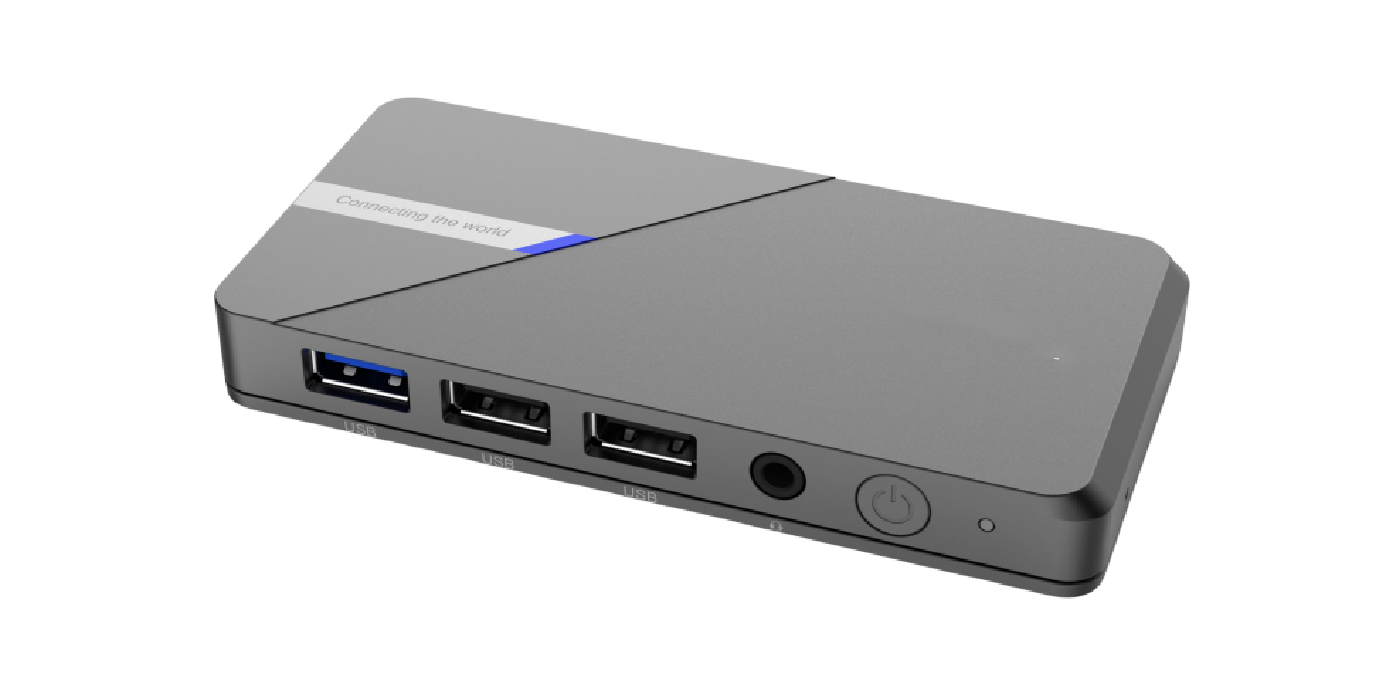

P466

卡片终端

基于瑞芯微RK3566平台，具有极小设计，广泛应用于窗口企业、政务、教育、办公、金融等云电脑场景。

留言咨询业务咨询

规格参数

CPU	CPU	RK3566，4 Core A55, 1.8GHz
	TDP	6 W
	NPU	1 TOPS
Display	Graphic card	Mali-450 MP2
	Multi displays	N/A

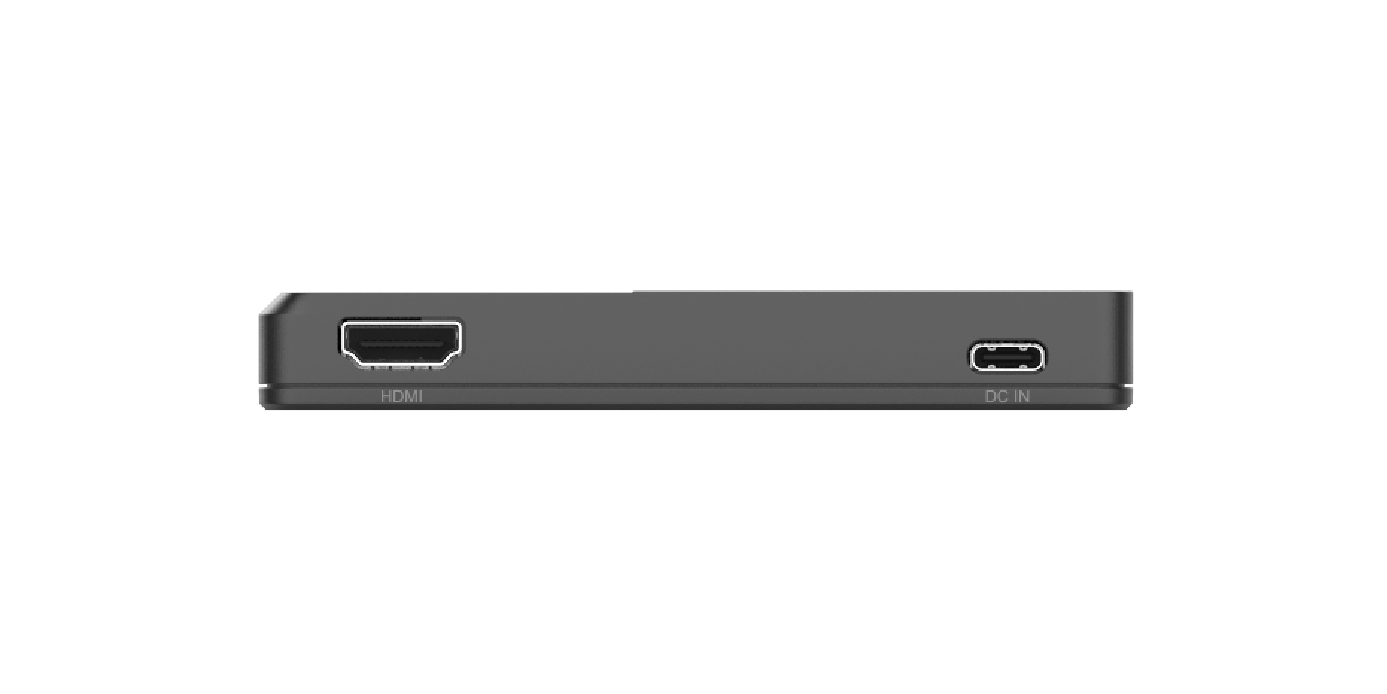

	Interface	1 x HDMI-Out 4K @60Hz
Network	Lan IC	N/A
	Lan Interface	N/A
	Lan Connector	N/A
	Wireless Type	SDIO
	Wireless Interface	1T1R, 2.4G/5G WiFi5 /BT4.2
	4G/5G	N/A
I/O interface	Serial Port	N/A

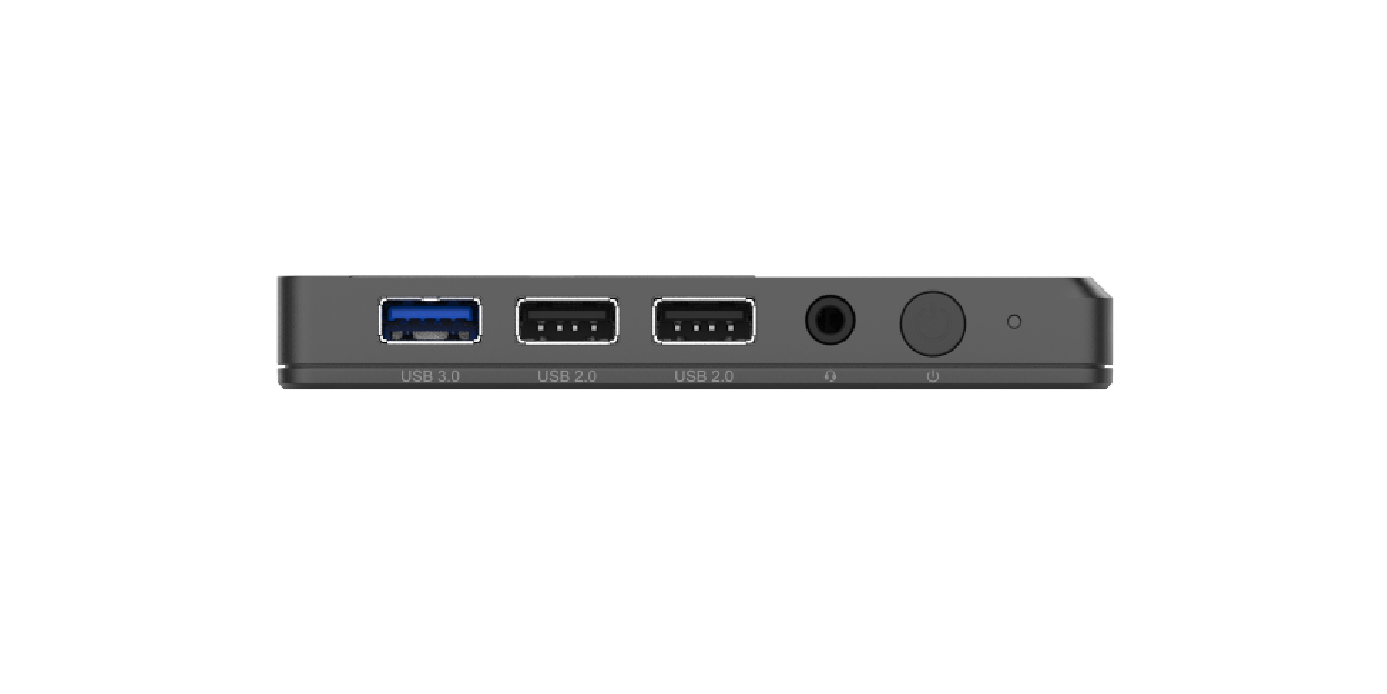

	USB	1 x USB3.0, 2 x USB2.0
	Button	1 x Power Button
	SIM CARD	N/A
	AUDIO	1 x 3.5mm Audio Jack（Mic-In + Line Out）
	POWER	1 x Type-C (Charging Port)
System	Memory	2GB LPDDR4/4X, Optional 4GB
	Storage	16GB EMMC, Optional 32GB
	OS	Android 11
	MCU	Optional (Wake-on-LAN /Remote Shutdown /Watchdog /Auto Power On)
	RTC	Power on at specific time everyday
	Other	N/A
	Power Input	5v DC-In (Type-C)
	Dimension	110mm(L) x 53.5mm(W) x 14.8mm(H)
	Operating Temp.	0~45℃
	Operating Humidity	10%~90% non-condensing
	Storage Temp	-20~70℃
	Operating Humidity	5%~90% non-condensing
